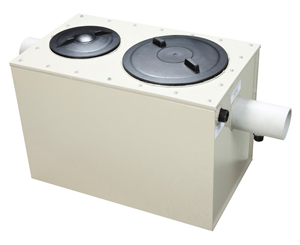

Solvent and Oil
Interceptor
|
Typically installed in a Screen Print workshop.
This tank design contains and slows the flow of waste to allow any solvents and/or oil to float and separate from the cleaner water which flows out to sewer.
Collected waste should be drained from the tank periodically and disposed as directed by local authorities. |
Above
Ground
 |
VP8
- Manufactured from 6mm Polypropylene (PP) or 1.6mm galvanised sheet iron or stainless steel, this tank is suitable for use with dilute solutions of solvents, petrol and oils
- The tank is supplied with:
- a removable airtight cover
- 25mm sampling valve socket
- 25mm drain valve socket
- 32mm vent socket
- Tank dimensions and pipework positions are nominal and in all cases conform to Trade Waste recommendations
- When space limitations dictate, equivalent capacity tanks can be manufactured to order
- *Note: Tanks larger than 250 litres capacity have external bracing fitted. Allow 50mm all round
Downloads
Solvent and Oil Interceptor Above Ground Installation. |
|
|
| |
